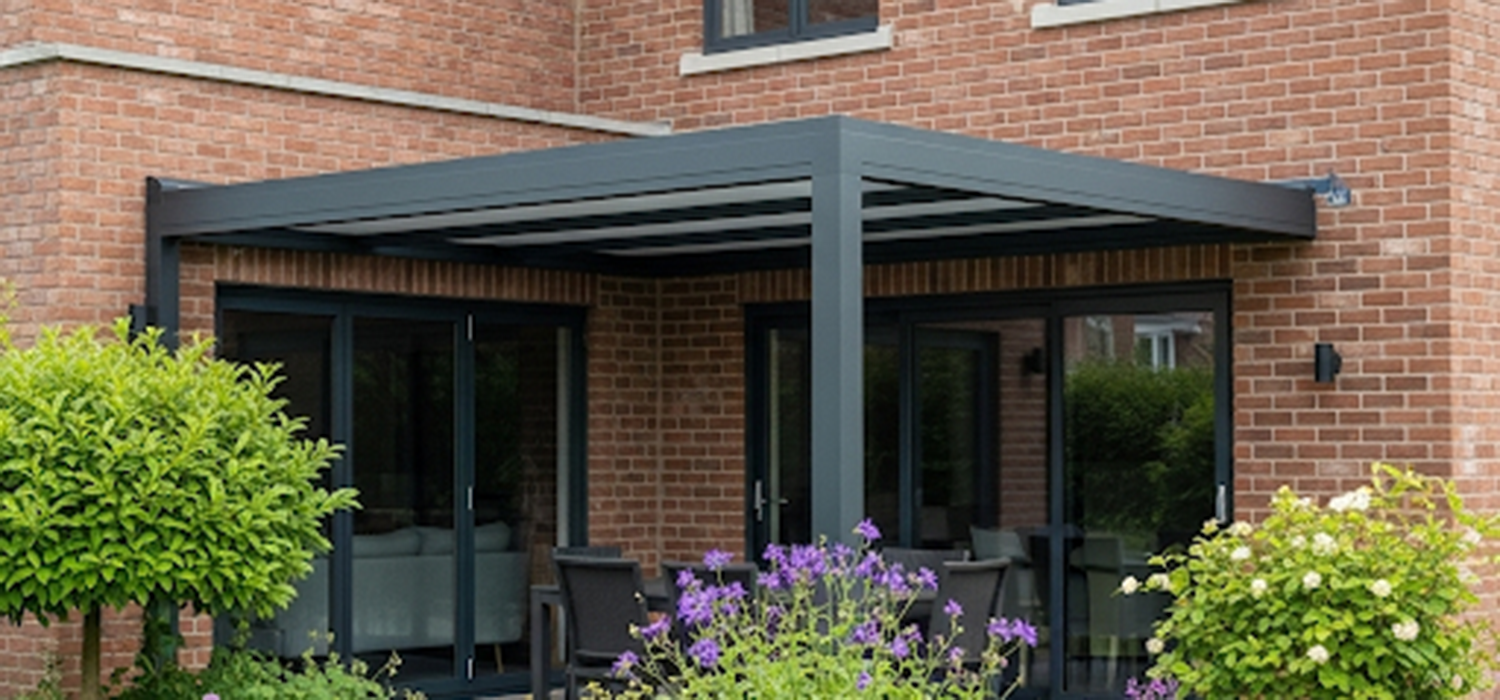

an aluminium pergola attached to brick wall

May 22, 2025

Can You Attach a Pergola to a Brick Wall? A Practical Guide for British Homes

Thinking of bolting that sleek Aluminium Pergola to your brick wall? The short answer: yes, you can—but only if you do it right. From dodgy drill jobs to storm-proof fixings, this guide shows you how to attach it safely, stylishly, and securely. Ready to drill into the details?

Introduction: The Feasibility of Attaching a Pergola to a Brick Wall

Attaching a pergola to a brick wall sounds like a straightforward job, but it’s one of those tasks that rewards careful planning. Done properly, it can transform your garden into a gorgeous, usable space. Done hastily, and you might find yourself picking bricks out of your flowerbeds after the next storm.

This guide is here to help you get it right—whether you're fixing a lightweight aluminium frame or something more substantial. We’ll walk through key considerations, handy tips, and real-world solutions to keep your pergola upright and your brickwork intact.

Understanding Attached Pergolas (Lean-to style, wall-mounted)

Wall-mounted or lean-to pergolas are a clever way to create an outdoor living area without gobbling up garden space. Instead of standing on four legs, they borrow strength from your existing walls.

These pergolas usually have two posts at the front and attach directly to your home or outbuilding at the rear. Aluminium models are especially popular for this purpose—they’re lightweight, rust-resistant, and incredibly low-maintenance.

Benefits of Attaching to a Wall (Stability, seamless integration, space-saving)

Fixing your pergola to a wall comes with several perks:

Extra stability: Your house wall adds solid support.
Sleek design: It blends into the building, giving a clean, integrated look.
Saves space: No rear posts means more room for seating, barbecues, or plant pots.

Assessing the Suitability of Your Brick Wall

Before you start hammering away, take a moment to assess the wall you’re working with. Not all brick is created equal.

Solid Brick vs. Brick Veneer (Critical distinction for anchoring)

This is a crucial bit. Solid brick walls can take the load; brick veneer, on the other hand, is more like a decorative shell.

How to Identify Veneer vs. Solid Construction

Solid brick: Look for bricks laid both lengthwise and end-on (header bricks).
Veneer: Usually found on modern builds, it’s just a single layer of brick with timber framing behind.

Implications for Anchoring (Need to anchor to structural frame behind veneer)

If you’ve got a veneer wall, don’t even think about anchoring straight into the brick. You’ll need to locate the structural timber behind and fix into that—otherwise your pergola might not stay put for long.

Condition and Age of the Brickwork

Even a solid wall won’t do much good if the bricks are falling apart.

Signs of Deterioration (Cracks, spalling, crumbling mortar)

Cracks that run across multiple bricks
Flaking surfaces (a sign of weather damage)
Mortar that’s soft, sandy or missing altogether

Importance of Repair Before Attachment

If the wall’s showing signs of wear, get it sorted before you begin. You can’t build a stable structure on crumbling foundations.

Wall Thickness and Structural Integrity

Thicker walls equal better support. Aim for at least 90mm of solid material. Anything less, and you might need specialist fixings or reinforcement.

Identifying Load-Bearing Walls (If applicable)

Mounting a pergola onto a load-bearing wall can be safe—but be cautious. If in doubt, get advice from a structural engineer. It’s better to spend a little upfront than face a costly repair down the line.

Choosing the Right Attachment Methods for Brick Walls

Now let’s get to the fun part: choosing how you’ll attach your pergola.

Ledger Board Installation (Most common and secure method)

Ledger boards are the go-to for most wall-mounted pergolas. They spread the load and provide a reliable fixing surface.

Material for the Ledger Board (Treated timber, aluminium beam)

Treated timber: Budget-friendly and effective, but make sure it’s rated for outdoor use.
Aluminium beam: Matches your aluminium pergola and won’t rust—ideal for modern builds.

Flashing and Sealing (Preventing water ingress)

Don’t forget flashing! Install it above the ledger board to steer water away, and seal around every fixing point with silicone to prevent damp getting into your walls.

Bolting the Ledger Board to the Brick (Using chemical or mechanical anchors)

Use either:

Chemical anchors: Great for older or crumbly brick.
Mechanical anchors: Expansion bolts are ideal for dense, modern brickwork.

Direct Post-to-Wall Anchoring (For lighter pergolas or specific designs)

Not all pergolas need a ledger. Some lightweight options use brackets to attach posts directly to the wall.

Using Wall Brackets and Robust Anchors

Choose heavy-duty, rust-resistant brackets and ensure they’re firmly bolted into the brick—not the mortar. Stainless steel or galvanised is best.

Anchor Types (Chemical vs. Mechanical) for Wall Attachment

Chemical anchors: Resin-based, ideal for soft or damaged masonry.
Mechanical anchors: Think through-bolts or sleeve anchors for robust walls.

Installation Process for Attaching a Pergola to a Brick Wall

Now it’s time to roll up your sleeves.

Accurate Measurement and Leveling

Grab your spirit level, tape measure, and a pencil. Take your time marking out fixing points—getting them level now saves headaches later.

Drilling Pilot Holes Safely (Refer to "How to Drill into Brick..." for detail)

Use a hammer drill with a masonry bit. Drill directly into the brick—not the mortar—and go deep enough for a secure hold (around 80–100mm).

Securing the Ledger Board or Brackets

Position the board or bracket, align with your pilot holes, and fix in place. Avoid overtightening—you don’t want to crack the brick.

Attaching the Pergola Structure to the Ledger/Brackets

Follow the pergola’s installation manual closely. Double-check your alignment, support the beams as you go, and tighten everything evenly.

Safety and Longevity Considerations

Your pergola might look pretty, but it also needs to be tough.

Wind Uplift and Lateral Forces on Attached Pergolas

In the UK, we’re no strangers to the odd blustery day. Consider adding bracing or even front support posts if you’re in a particularly exposed area.

Preventing Damage to Both Pergola and Brick Structure

Distribute the load evenly and don’t cut corners with cheap fixings. A bit of care at this stage will save you major repairs down the line.

Regular Inspections and Maintenance

Once a year, check for:

Loose fixings
Signs of water ingress
Cracked brick or shifting structure

Re-seal and tighten as needed. It only takes a few minutes and can add years to your pergola’s life.

Planning Permission and Building Regulations (UK Specific)

Don’t let your pergola plans get blocked by red tape.

When Attached Pergolas Require Permission

In most cases, you won’t need planning permission if:

It’s under 2.5 metres high and within 2 metres of a boundary
It’s not on a listed building
It doesn’t significantly alter your home’s appearance

Still, it’s worth checking with your local planning authority—rules can vary.

Height Restrictions and Proximity to Boundaries

Go over the limits, and you’ll likely need permission. Better to ask now than to undo it later.

Conclusion: A Secure and Integrated Pergola Solution

Attaching a pergola to a brick wall isn’t just doable—it’s a brilliant way to elevate your outdoor space. With the right tools, a sound wall, and careful planning, your aluminium pergola will be standing proud through seasons of sunshine, rain, and even the odd British gale.

And remember: when it comes to anchoring, precision beats brute force every time.
