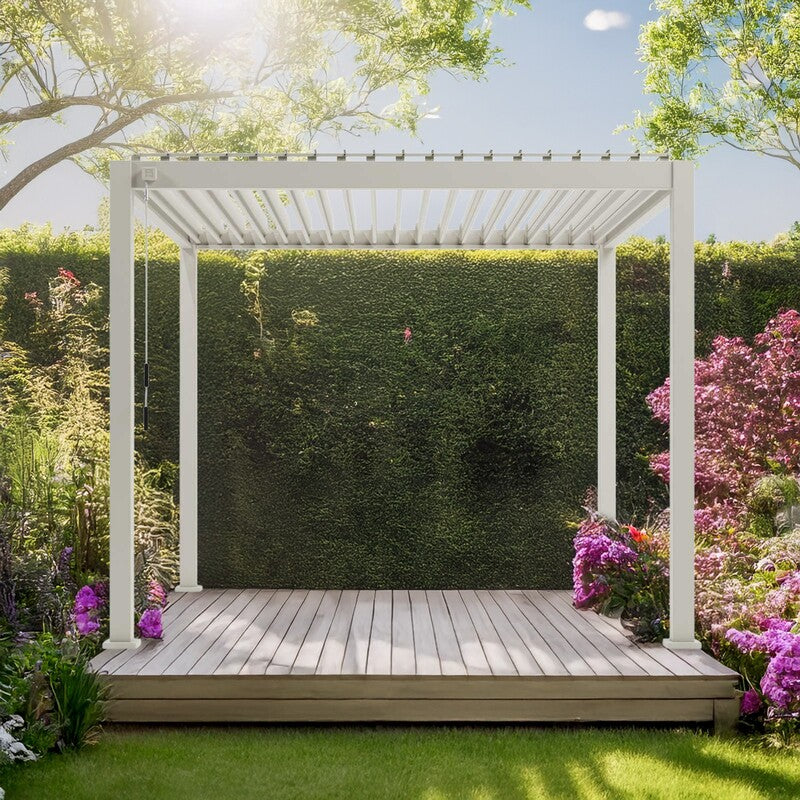

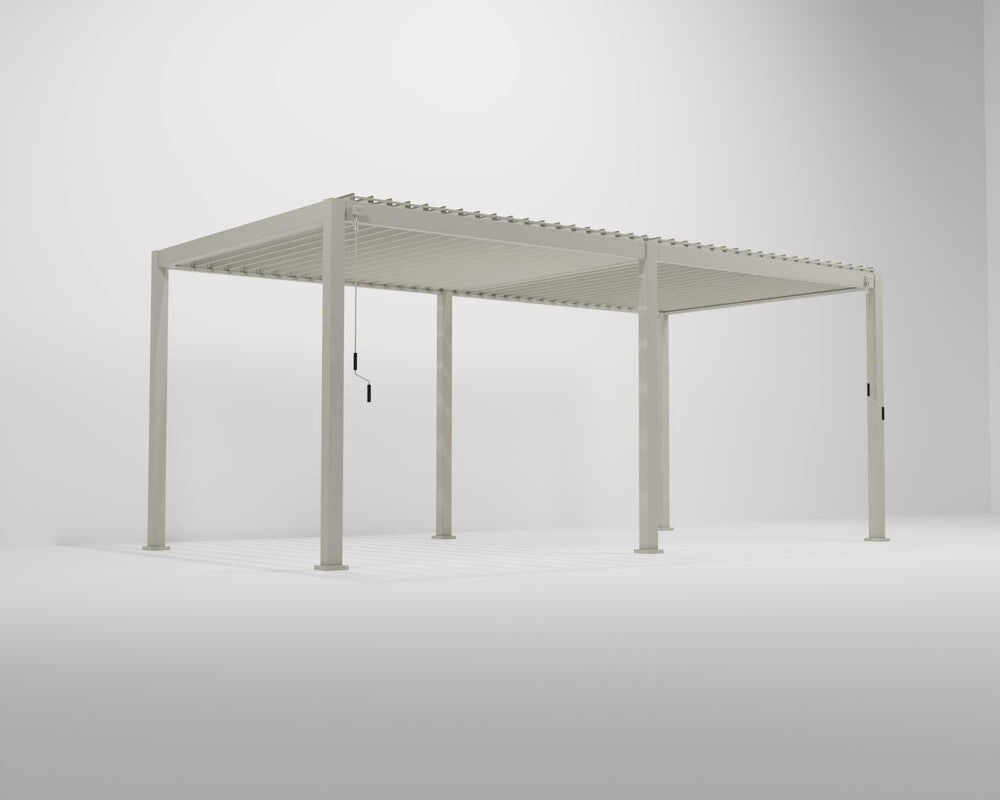

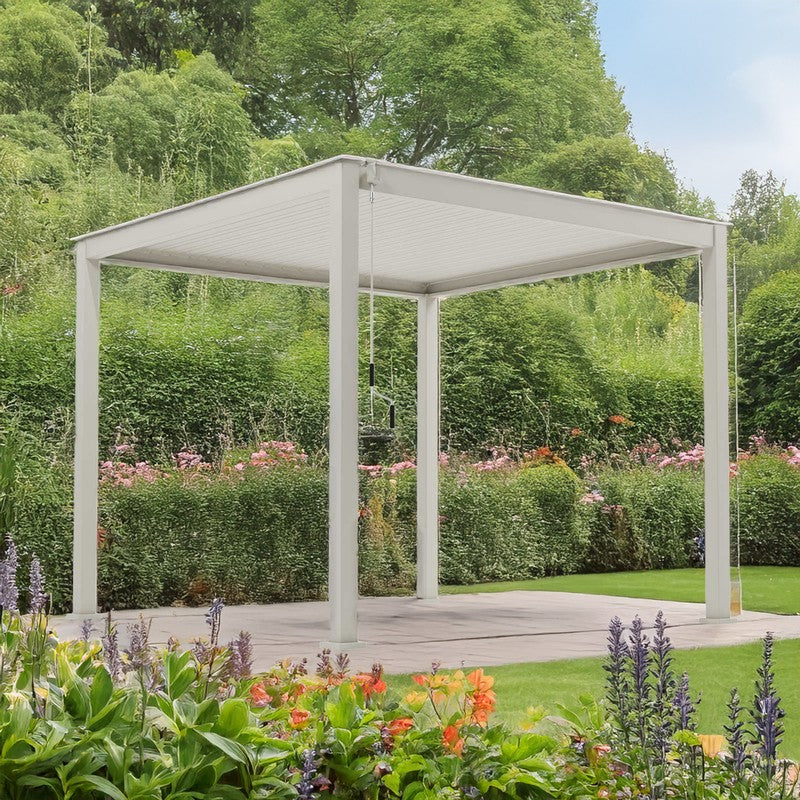

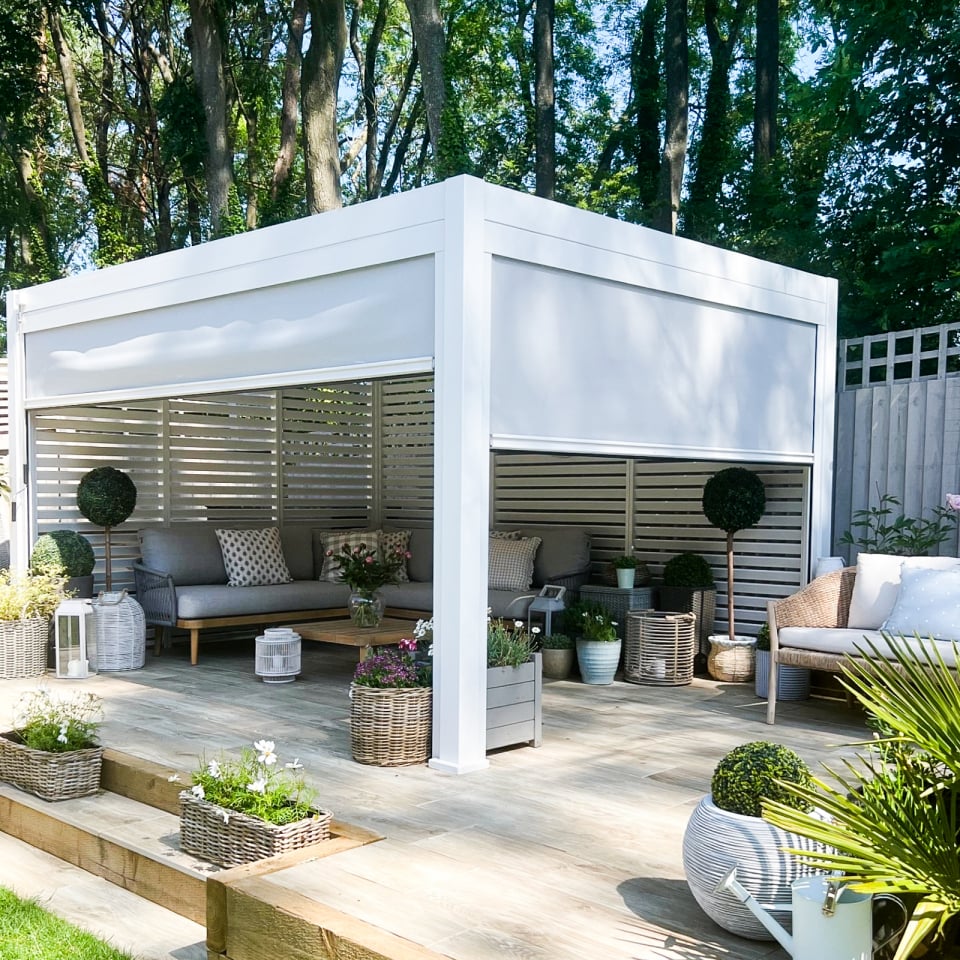

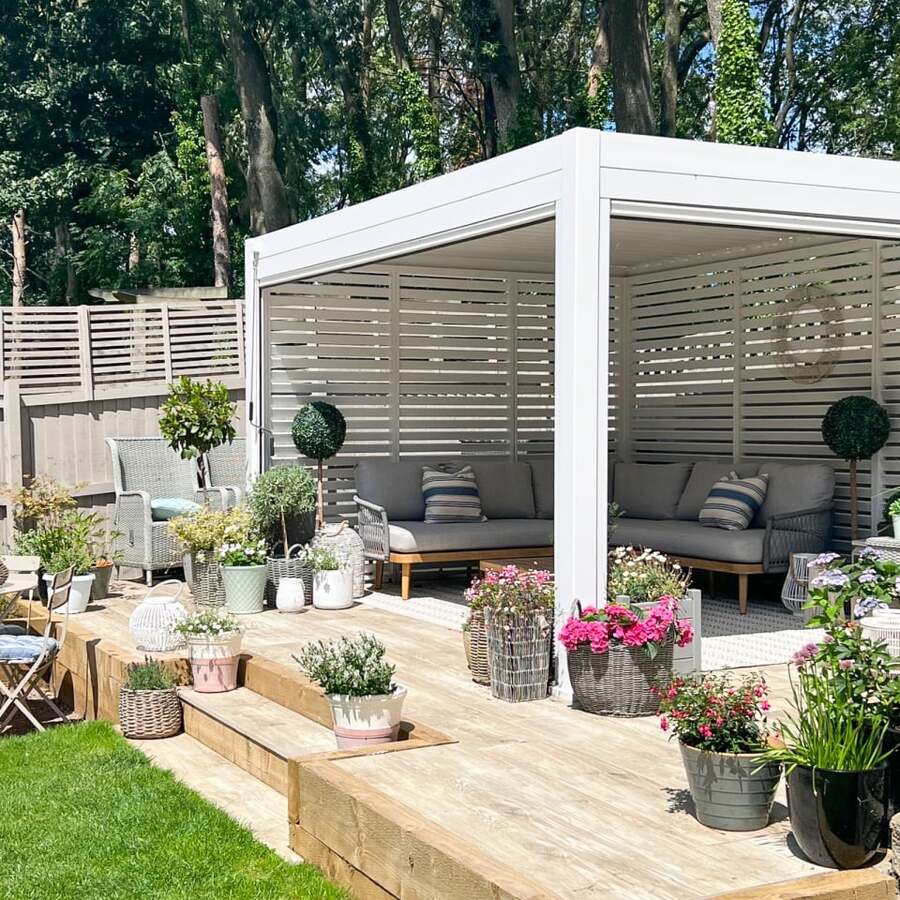

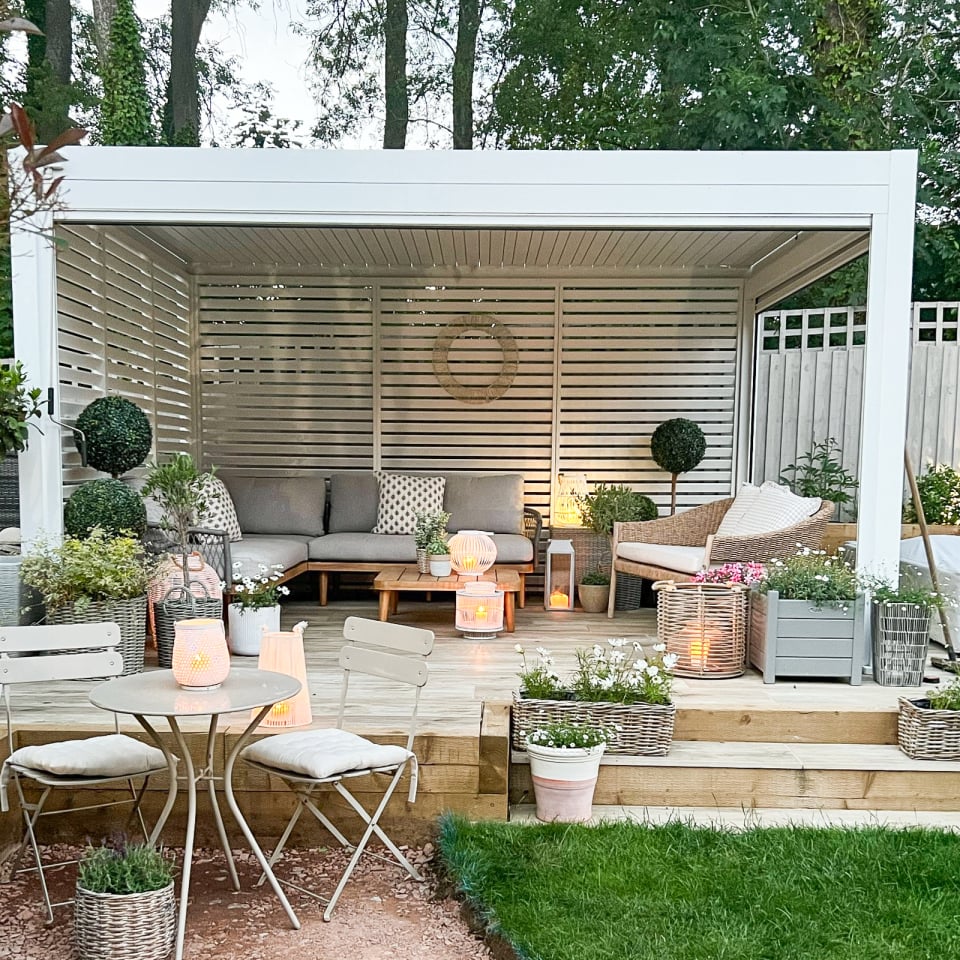

Nova Titan Aluminium Pergola in Pebble

A Best-Selling Aluminium Pergola Built for UK Weather

Also available in Grey and Wood Look finishes, or as a package including 4 drop sides.

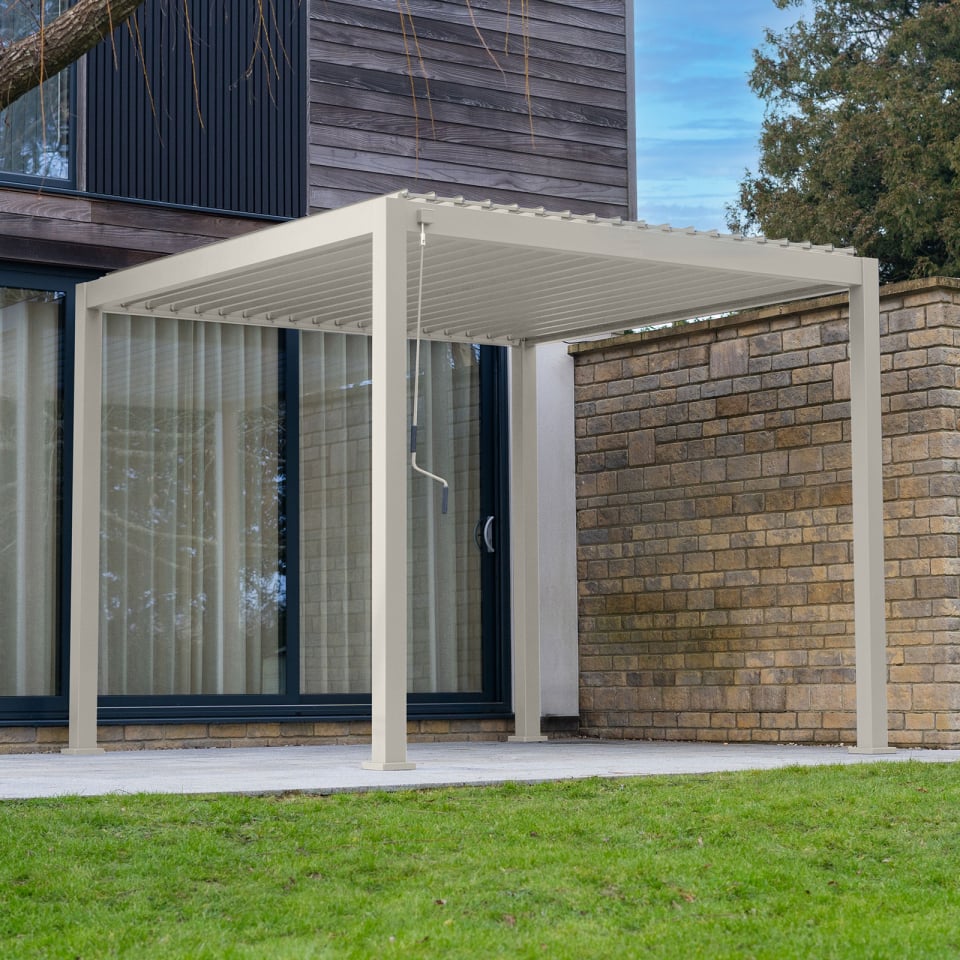

Upgrade your garden, patio, or commercial space with the Nova Titan Aluminium Pergola in Pebble. Designed for year-round outdoor living, this premium aluminium pergola delivers adjustable shade, reliable weather protection, and a softer neutral finish that blends naturally with stone paving, porcelain tiles, and lighter garden schemes. Ideal if you want high performance without an overly bold architectural look.

Built to Last – Premium Aluminium Construction

The Nova Titan Aluminium Pergola is engineered for long-term outdoor use, combining structural strength with refined design to perform reliably in all seasons.

• High-Grade Aluminium: TIGER Drylac powder-coated finish for long-lasting resistance to rust, fading, and corrosion
• Double-Louvred Roof System: Dual-layer louvres add strength while reducing rain noise during heavy showers
• No Central Beam: Seamless louvre coverage across the full roof span for a cleaner look and uninterrupted airflow
• Weatherproof Design: Built to withstand UK rain, wind, and winter conditions with minimal maintenance
• Award-Winning Design: Red Dot Design Award winner, recognised for innovation and build quality

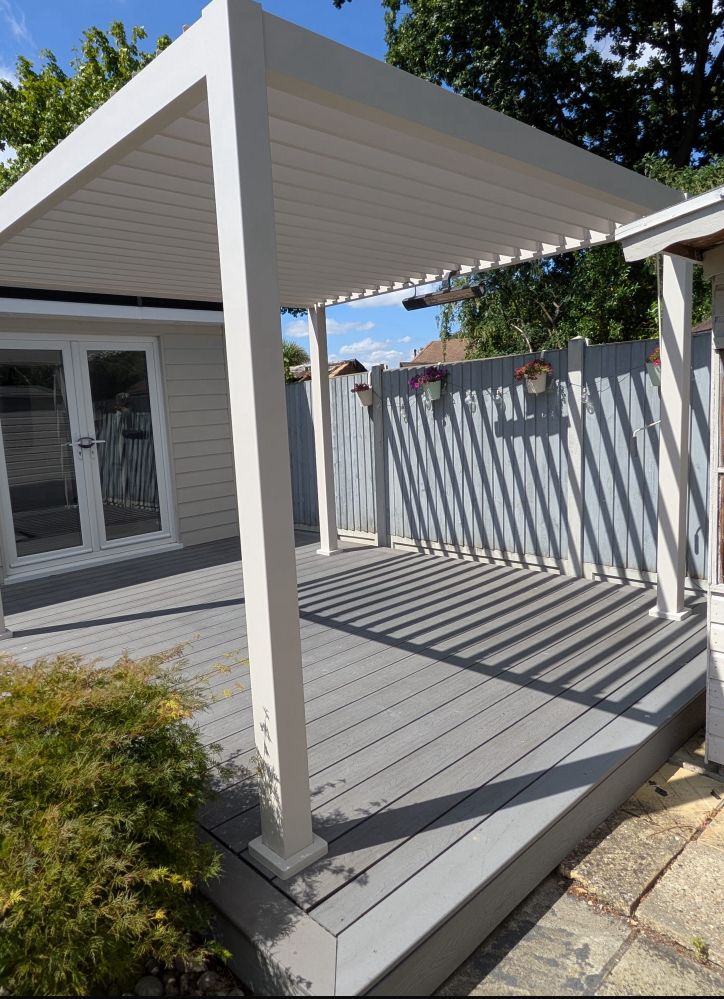

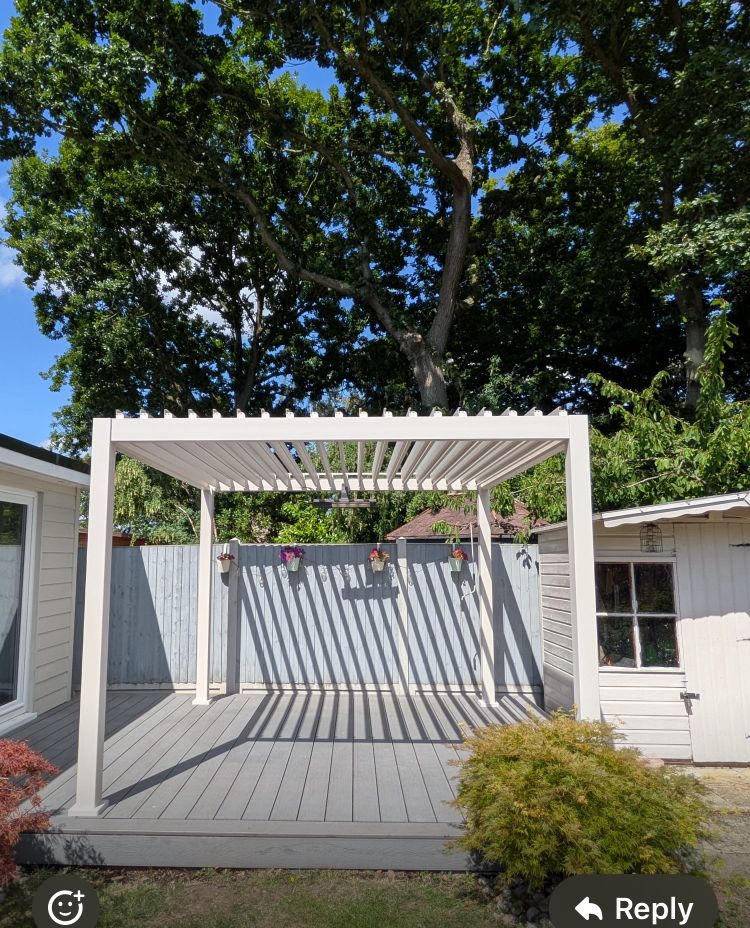

The Pebble finish is particularly popular for patios with porcelain tiles, light stone paving, and gardens where a more understated, neutral aesthetic is preferred.

Adjustable Louvred Roof System

The Nova Titan’s manually operated louvred roof gives you full control over light, airflow, and protection from the elements, allowing you to adapt your outdoor space throughout the day and across the seasons.

• Manually Adjustable Louvres: Tilt to allow sunlight, create shade, or fully close during rain
• Integrated Drainage System: Rainwater is discreetly channelled through the frame and away via the posts
• All-Weather Usability: Enjoy a dry, comfortable outdoor area even in unpredictable UK conditions

This system balances simplicity and reliability without the complexity or maintenance demands of motorised alternatives.

Snow & Wind Load Performance

The Nova Titan Aluminium Pergola is engineered to perform reliably in challenging weather conditions, making it suitable for exposed and coastal UK locations.

Example performance ratings (3 × 3m freestanding configuration):

• Snow Load: 60 kg/m²
• Wind Rating: Beaufort Scale 11
• Wind Speed: 103–117 km/h (Severe storm conditions)

Dimensions & Layout Planning (Example Configuration)

The measurements below show a 3 × 3m freestanding Nova Titan Aluminium Pergola as an example. Dimensions and structural specifications are identical across all Nova Titan finishes, including Pebble, Grey, and Wood Look.

Download the 3 × 3m dimension drawing (PDF)

Detailed Measurements (3 × 3m Example)

A — External Roof Width
3927 mm / 154.6"

B — External Roof Depth
3012 mm / 118.5"

C — Internal Roof Width
3705 mm / 145.9"

D — Internal Roof Depth
2790 mm / 109.8"

E — Footprint Width
3640 mm / 143.3"

F — Footprint Depth
2725 mm / 107.3"

G — Overall Width (Including Overhang)
3992 mm / 157.2"

H — Overall Depth
3077 mm / 121.1"

J — Clearance Height (Base to Louvres)
2368 mm / 93.2"

K — Full Height
2508 mm / 98.7"

L — Post Width
111 mm / 4.4"

M — Base Plate Width
176 mm / 6.9"

N — Gutter Width
140 mm / 5.5"

P — Louvre Thickness
75 mm / 3.0"

Planning tip: Use these dimensions to plan foundations, clearances, and furniture layout before installation.

A Versatile Outdoor Living & Entertainment Space

• Ideal for gardens, terraces, hot tubs, and BBQ areas
• Well suited to restaurants, bars, cafés, and hospitality venues
• Neutral Pebble finish designed to complement porcelain patios and light paving

Quick & Hassle-Free Installation

• Typical assembly time of around 2 hours (2–3 people recommended)
• Supplied with expansion bolts for secure ground anchoring
• No planning permission required in most cases*

*Always check local authority guidelines to confirm.

Warranty & Delivery

• 6-Year Structural Warranty included (5 years for supply-only orders)
• Fast UK Delivery: Installation typically available within 2 weeks, subject to stock availability

Personalise Your Pergola

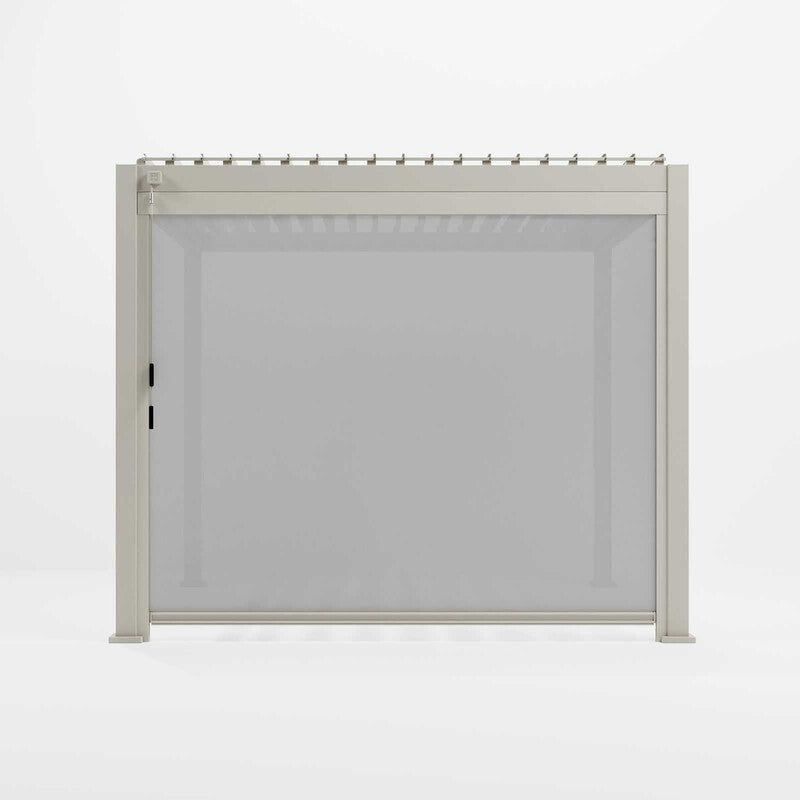

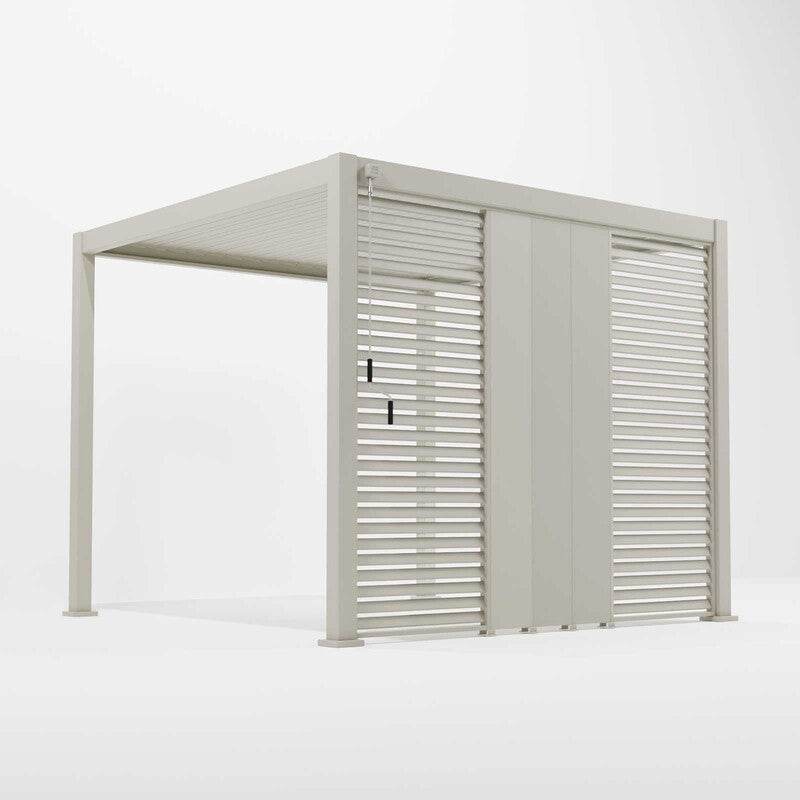

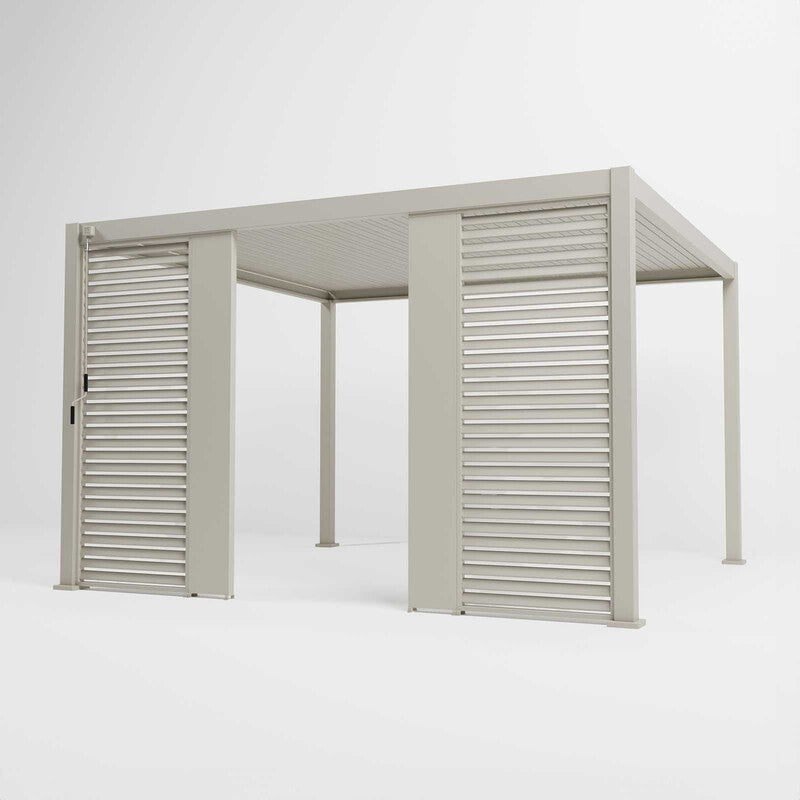

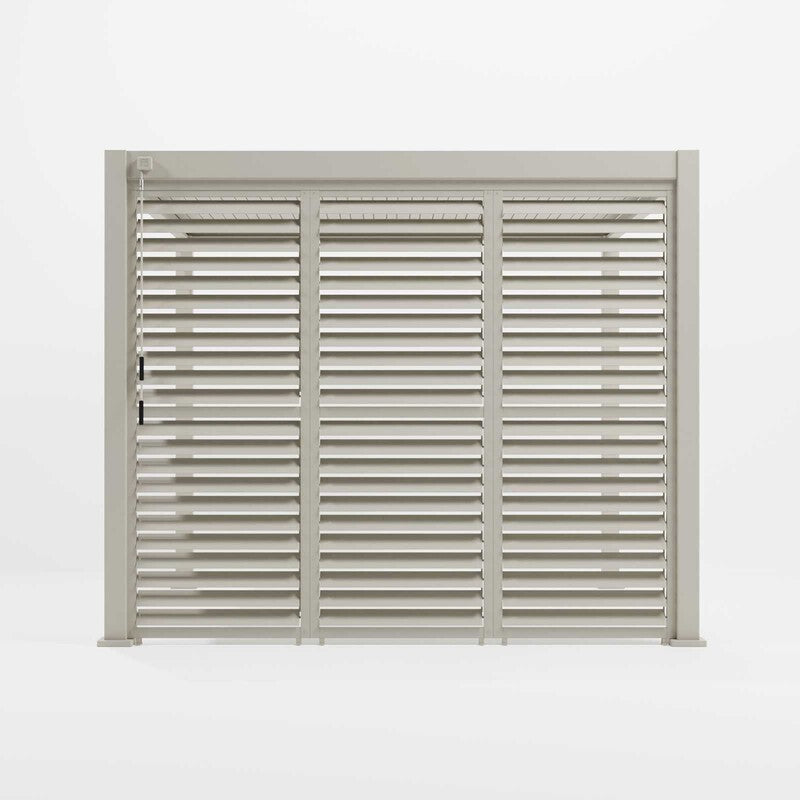

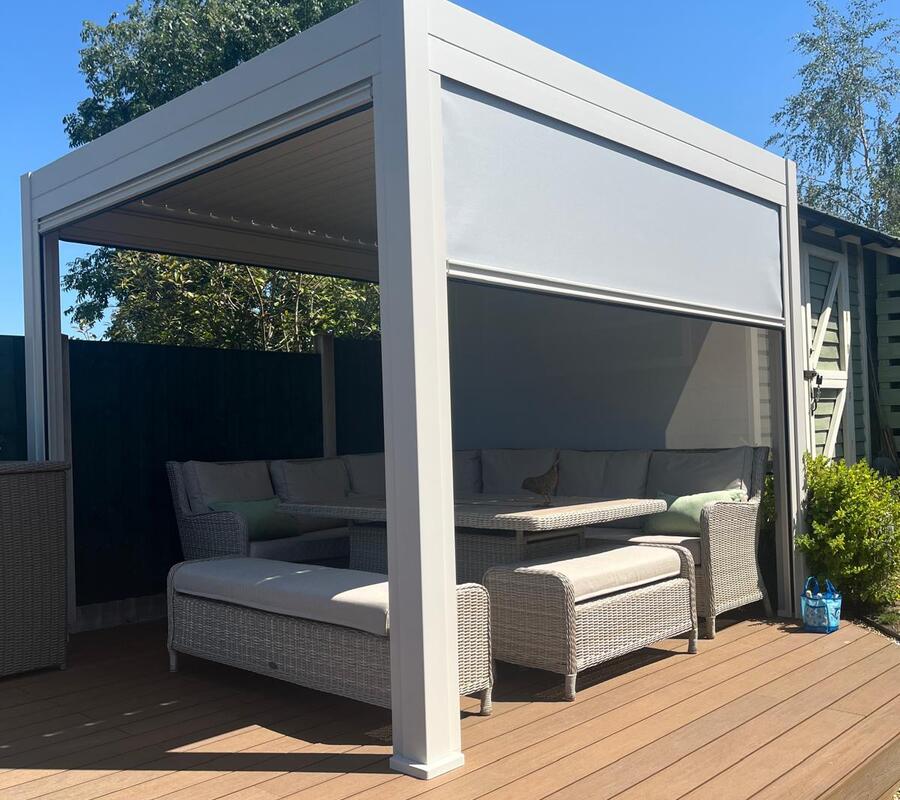

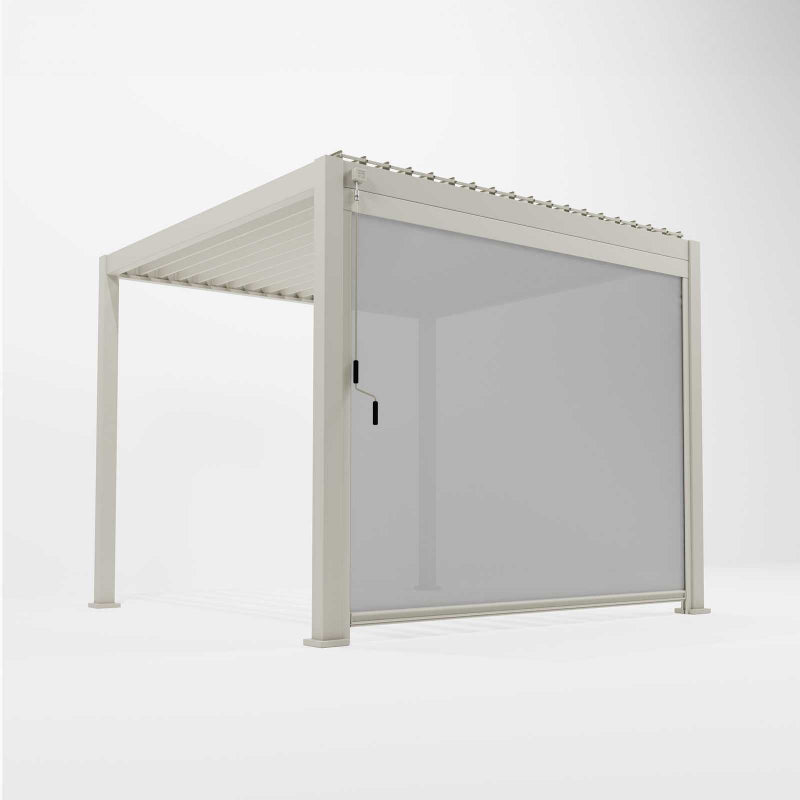

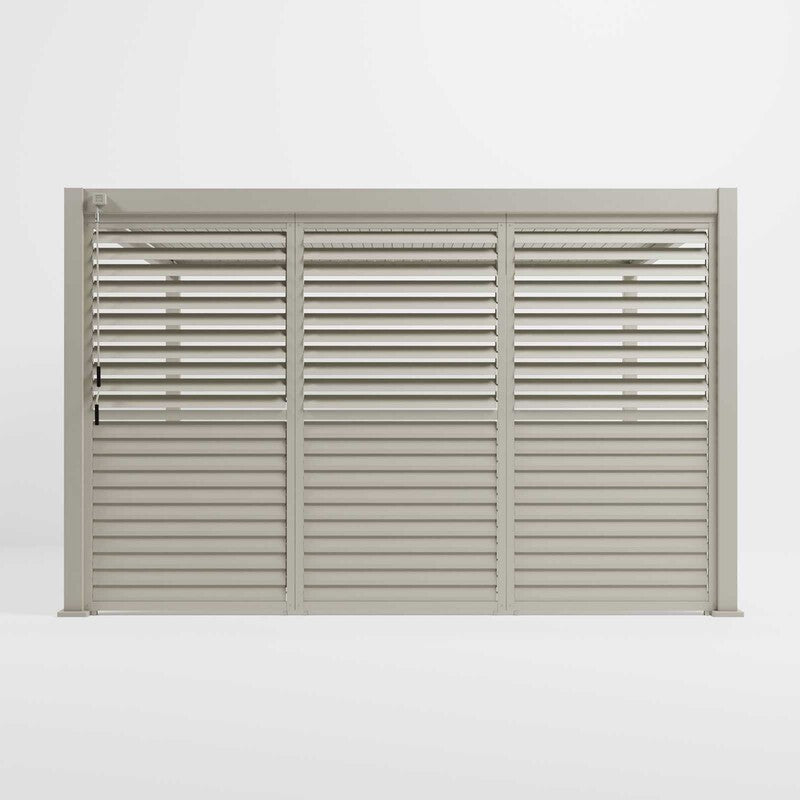

Enhance your Nova Titan Pergola with optional LED lighting, infrared heaters, privacy screens, louvred side walls, or French sliding doors.

View Titan Pergola Accessories

View the Nova Pergola Collection

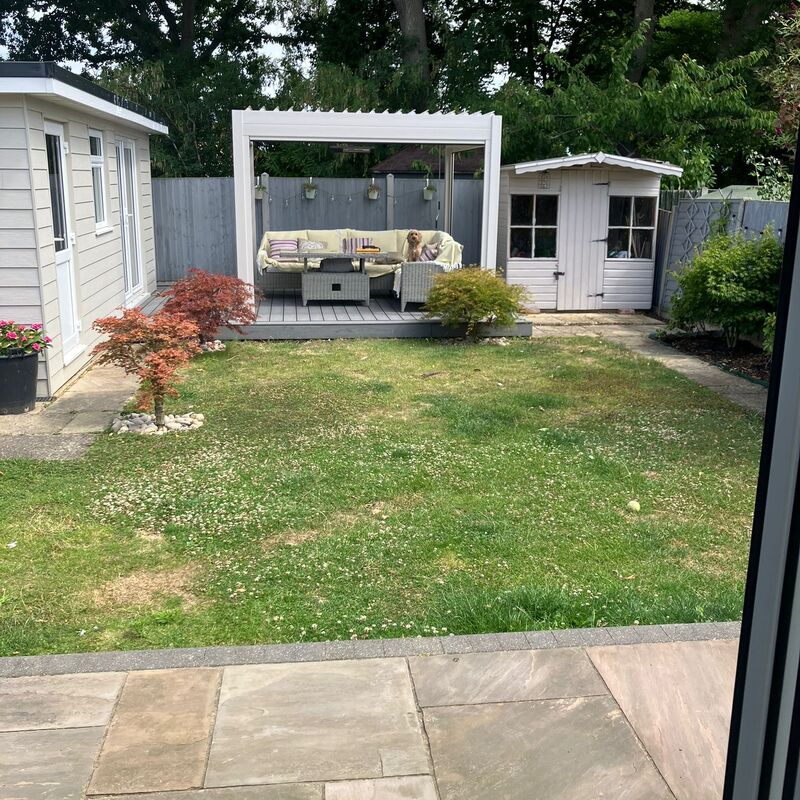

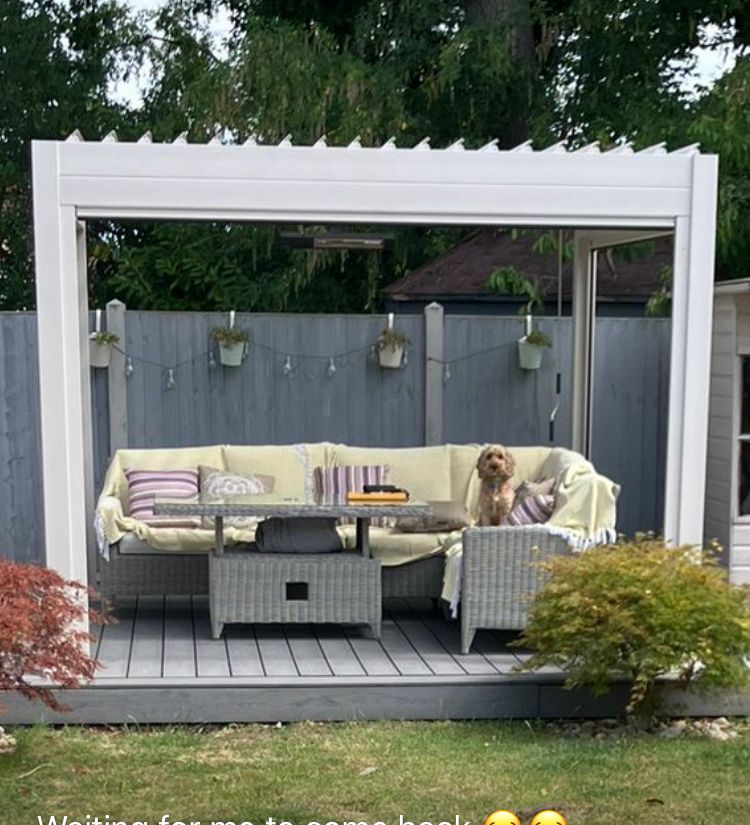

See the Pebble Finish in Your Own Garden

See how the Nova Titan Aluminium Pergola in Pebble could look in your own garden with our CAD design and animation service.

Get a Free CAD Design of the Nova Titan in Your Garden

See Our Wider Range of Aluminium Pergolas
